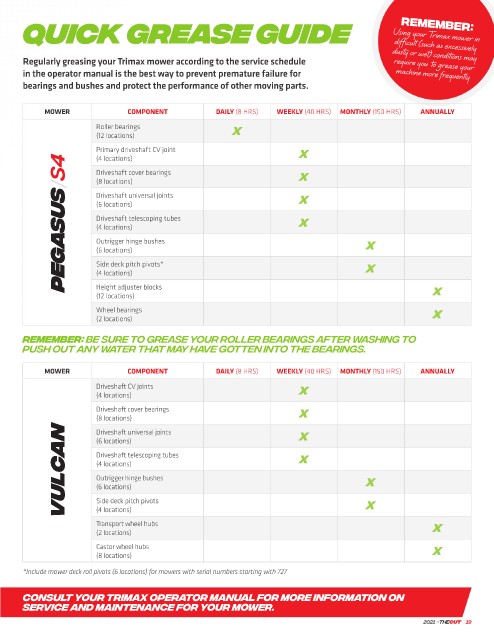

QUICK GREASE GUIDE Using your Trimax mower in
REMEMBER:

difficult (such as excessively
dusty or wet) conditions may
Regularly greasing your Trimax mower according to the service schedule require you to grease your
in the operator manual is the best way to prevent premature failure for machine more frequently
bearings and bushes and protect the performance of other moving parts.

MOWER COMPONENT DAILY (8 HRS) WEEKLY (40 HRS) MONTHLY (150 HRS) ANNUALLY
Roller bearings X
(12 locations)
Primary driveshaft CV joint X
Pegasus/S4 Driveshaft universal joints X X
(4 locations)
Driveshaft cover bearings
X
(8 locations)

(6 locations)
Driveshaft telescoping tubes
X
(4 locations)
Outrigger hinge bushes
(6 locations)
Side deck pitch pivots*
(4 locations)
Height adjuster blocks
(12 locations) X X
Wheel bearings X
(2 locations)

REMEMBER: Be sure to grease your roller bearings after washing to
push out any water that may have gotten into the bearings.

MOWER COMPONENT DAILY (8 HRS) WEEKLY (40 HRS) MONTHLY (150 HRS) ANNUALLY
Driveshaft CV joints X
(4 locations)

Driveshaft cover bearings X
(8 locations) X
Vulcan Driveshaft telescoping tubes X X
Driveshaft universal joints
(6 locations)

(4 locations)
Outrigger hinge bushes
(6 locations)
Side deck pitch pivots
(4 locations)
Transport wheel hubs X X
(2 locations)
Castor wheel hubs X
(8 locations)

*Include mower deck roll pivots (6 locations) for mowers with serial numbers starting with 727

Consult your Trimax operator manual for more information on
service and maintenance for your mower.
